Shenzhen Deertom Technology Co.,Ltd

Products > LTE 4G Antennas > 2500-2700MHz Panel Antenna > 2500-2700MHz Sector Antenna 65 Degrees 18dBi

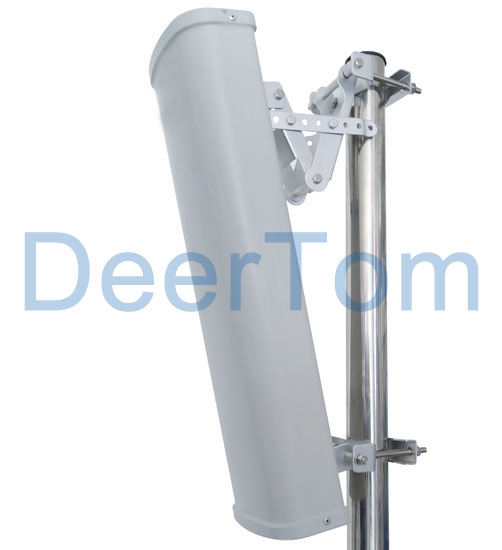

Product name : 2500-2700MHz Sector Antenna 65 Degrees 18dBi
Product No. : DT-SPA2500-2700-18-65
             [Next Product]→
Online Inquiry         Email Us

  Details:



ELECTRICAL
Model DT-SPA2500-2700-18-65
Frequency Range 2500-2700MHz
Gain 18dBi
Beamwidth H: 65° , E: 12°
VSWR ≤1.5
F/B Ratio ≥25dB
Polarization Vertical
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension          1050*285*135mm
Weight 8kg
Radome Material UPVC
Rated Wind Velocity 60m/s
Connector Position                               Bottom
