Shenzhen Deertom Technology Co.,Ltd

Products > LTE 4G Antennas > 2500-2700MHz Parabolic Antenna > 2500-2700MHz Grid Parabolic Antenna 24dBi

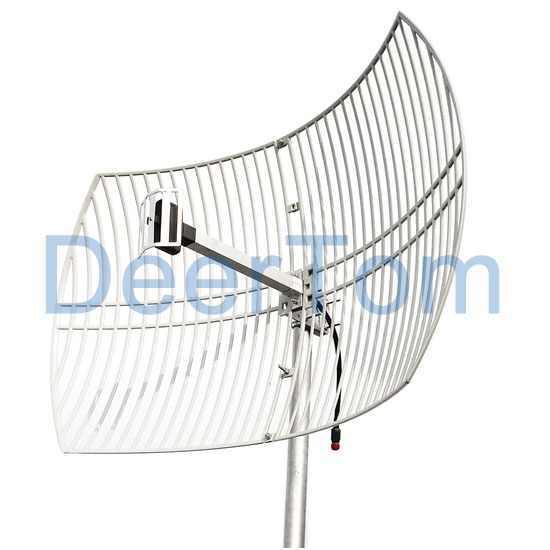

Product name : 2500-2700MHz Grid Parabolic Antenna 24dBi
Product No. : DT-GPA2500-2700-24
             [Next Product]→
Online Inquiry         Email Us

  Details:



ELECTRICAL
Model DT-GPA2500-2700-24
Frequency Range 2500-2700MHz
Gain 24dBi
Beamwidth H:  , E: 13°
VSWR ≤1.5
F/B Ratio ≥30dB
Polarization Vertical
Max Power 50W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension          600*900mm
Weight 5kg
Mounting Kits L Bracket & U Bolts
Working Temperature -40 ~ + 60
Rated Wind Velocity                             60m/s
