Shenzhen Deertom Technology Co.,Ltd

Products > LTE 4G Antennas > 698-2700MHz Panel Antenna > 800-2700MHz 4G LTE Outdoor MIMO Antenna

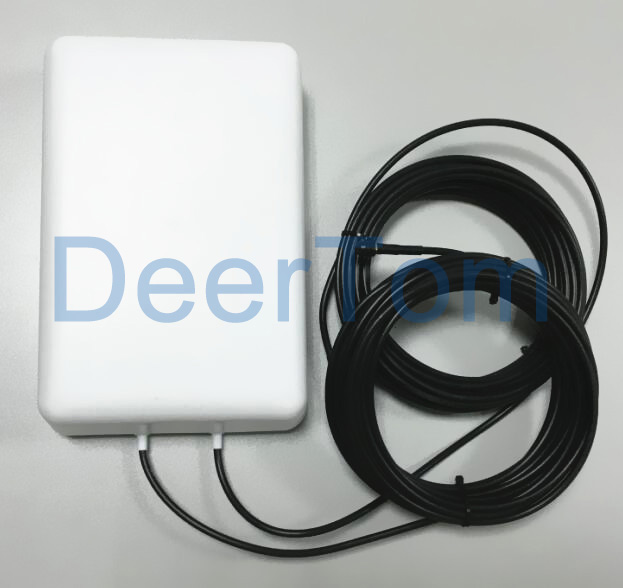

Product name : 800-2700MHz 4G LTE Outdoor MIMO Antenna
Product No. : DT-PA800-2700-9-2B
             [Next Product]→
Online Inquiry         Email Us

  Details:




ELECTRICAL
Model DT-PA800-2700-9-2B
Frequency Range 806-960/1710--2700MHz
Gain 8/9*2dBi
Beamwidth H: 79±5° , E: 68±5°
VSWR ≤1.5
Polarization Vertical and Horizontal or ±45°
F/B Ratio ≥13dB
Isolation ≥25dB
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female*2 or customized
Antenna Dimension          280*180*60mm
Weight 0.75kg
Radome Material Waterproof ABS
Working Temperature  -40~65
Antenna Color White
Rated Wind Velocity 60m/s
Pole Diameter Φ35-55mm
Rated Wind Velocity                             210 km/h
