Shenzhen Deertom Technology Co.,Ltd

Products > LTE 4G Antennas > 698-2700MHz Panel Antenna > 4G LTE Outdoor Sectorial MIMO Antenna

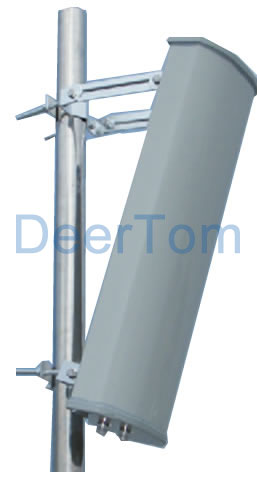

Product name : 4G LTE Outdoor Sectorial MIMO Antenna
Product No. : DT-SPA698-2700-10*2-65
←[Previous Product]
Online Inquiry         Email Us

  Details:


ELECTRICAL
Model DT-SPA698-2700-10*2-65
Frequency Range 698-960/1710-2700MHz
Gain 8 / 10*2dBi
Beamwidth H: 60 ±  , E: 50 ±
VSWR ≤1.8
F/B Ratio ≥20dB
Polarization Vertical and Horizontal or ±45°
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female *2 or customized
Antenna Dimension          400*290*135mm
Weight 4.5kg
Radome Material PVC
Rated Wind Velocity 60m/s
Working Temperature -4060
Pole Diameter                                       Ф50115mm
