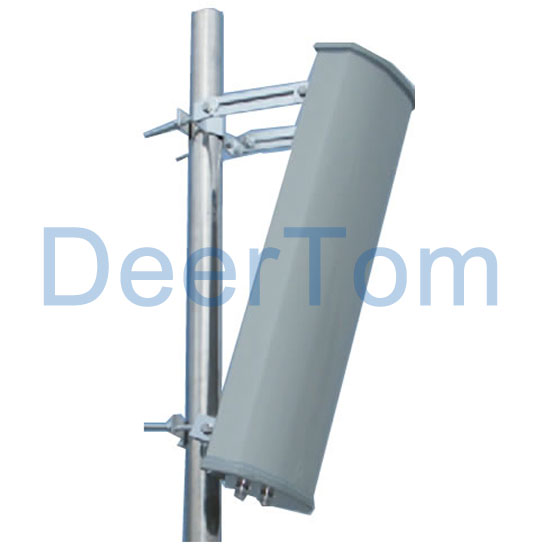

Product name : 5150-5850MHz Dual Polarization Sector Antenna 65 Degrees 18dBi
Product No. : DT-SPA5158-18*2-65
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:



ELECTRICAL
Model DT-SPA5158-18*2-65
Frequency Range 5150-5850MHz
Gain 18*2dBi
Beamwidth H: 65° , E:
VSWR ≤1.5
F/B Ratio ≥25dB
Polarization Vertical and Horizontal or ±45°
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension          680*160*60mm
Weight 8kg
Radome Material ABS
Pole Diameter Ф3355mm
Rated Wind Velocity                             60m/s
