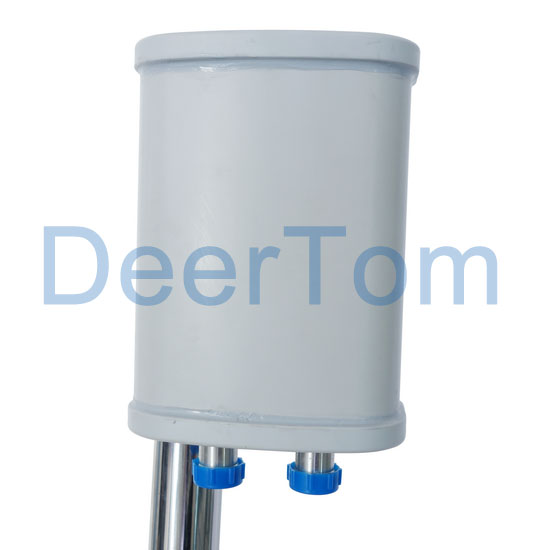

Product name : 5150-5850MHz Dual Polarization Sector Antenna 65 Degrees 11dBi
Product No. : DT-SPA5158-11*2-65
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:


ELECTRICAL
Model DT-SPA5158-11*2-65
Frequency Range 5150-5850MHz
Gain 11*2dBi
Beamwidth H: 65° , E: 30°
VSWR ≤1.5
F/B Ratio ≥25dB
Polarization Vertical and Horizontal or ±45°
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension          160*160*60mm
Weight 2kg
Radome Material ABS
Rated Wind Velocity 60m/s
Pole Diameter Ф3355mm
Mounting Kits                                        L bracket & U bolts
