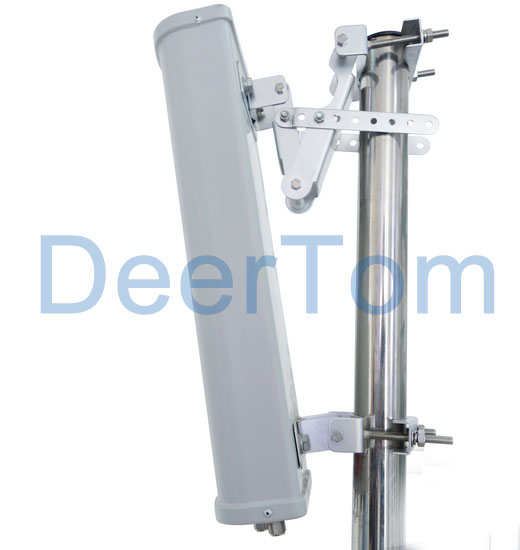

Product name : 2.4GHz WIFI Sector Panel Antenna 65Degrees 18dBi
Product No. : DT-SPA2400-18*2-65
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:



ELECTRICAL
Model DT-SPA2400-18*2-65
Frequency Range 2400-2500MHz
Gain 18*2dBi
Beamwidth H: 65° , E:
VSWR ≤1.5
F/B Ratio ≥20dB
Polarization Vertical and Horizontal or ±45°
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female *2 or customized
Antenna Dimension          910*180*65mm
Weight 5kg
Radome Material UPVC
Diameter of the Pole Φ50-105mm
Rated Wind Velocity 60m/s
Connector Position                               Bottom
